Features :
◆ High and low voltage input is for option
◆ High output current and power
◆ Full load efficiency up to 85%
◆ Design for high reliability, long lifetime
◆ Natural cooling, heat sink attachable
◆ Fast dynamic response
Condition: All specifications are tested under the room temperature 25℃ , Normal input voltage and Pure Negative Normal Load.
Input Characteristic：
Voltage Range:
12VDC（Rated value） 9-18 VDC 18 VDC（Rated value） 9-36 VDC
24 VDC（Rated value） 18-36 VDC
48 VDC（Rated value） 36-72 VDC
110VDC（Rated value） 66-154 VDC
Output Characteristic：
| Voltage Set-point Accuracy | ±2% |
| Output Voltage Range | ±10% |
| Line Regulation<main> | ±0.5% |
| Load Regulation<main> | ±0.5% |
| Output Current Limiting | 120%(Typ) |
| Output Current | 2-10A for option |
| Output voltage | 5-48V |
| Power | 40-200w |
General Characteristic：
| Switching Frequency | 100 - 200 KHz | ||
| Isolation Resitstance | 200 MΩ | ||
| Isolation Voltage | Input-Output | >1500 VDC | |
| Input-Case | >1050 VDC | ||
| Output-Case | >500 VDC | ||
| Environmental Characteristics | Case Temperature | Industry | -25 - +85℃ |
| Military I | -40 - +85℃ | ||
| Military II | -55 - +85℃ | ||
| Storage Temperature | Industry | -45 - +105℃ | |
| Military | -55 - +105℃ | ||
Protective Characteristic：
1、Input under voltage protection
2、Input over voltage protectio
3、Over temperature protection
4、Output over current protection
5、Output short circuit protection
Models：

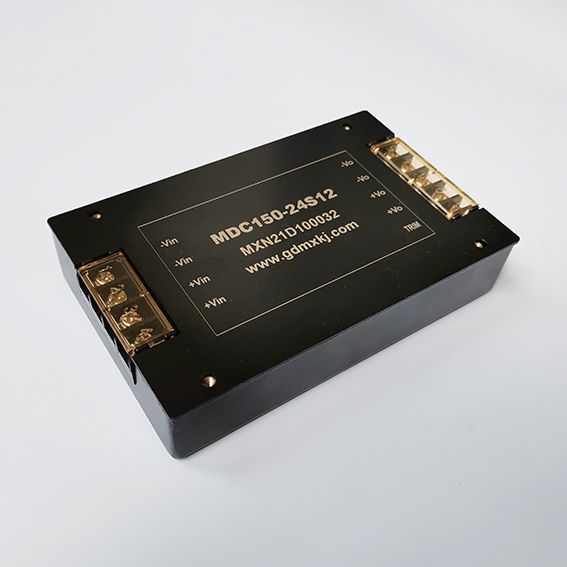

| Vac Input voltage | Vac Input voltage<Range> | Vdc Output voltage | A Output current | pk-pkmv Ripple and noise | Efficiency | Models | |
| SING | 18 | 9-36 | 12 | 8.33 | 120 | 83% | MDC100-18S12 |
| 18 | 9-36 | 24 | 4.16 | 200 | 84% | MDC100-18S24 | |
| 24 | 18-36 | 12 | 12.5 | 120 | 85% | MDC150-24S12 | |
| 24 | 18-36 | 24 | 6.25 | 200 | 86% | MDC150-24S24 | |
| 48 | 36-72 | 12 | 12.5 | 120 | 84% | MDC150-48S12 | |
| 48 | 36-72 | 24 | 6.25 | 200 | 86% | MDC200-48S24 | |
| 110 | 66-154 | 12 | 12.5 | 120 | 84% | MDC150-110S12 | |
| 110 | 66-154 | 24 | 8.33 | 200 | 86% | MDC200-110S24 | |
| 110 | 66-154 | 48 | 4.16 | 300 | 86% | MDC200-110S48 | |
| DOU | 24 | 18-36 | 05&12 | 10&8.33 | 100&120 | 82% | MDC150-24D05&12 |
| 24 | 18-36 | 12&24 | 4&4.16 | 120&200 | 84% | MDC150-24D12&24 | |
| 24 | 18-36 | 05&24 | 10&4.16 | 100&200 | 83% | MDC150-24D05&24 | |

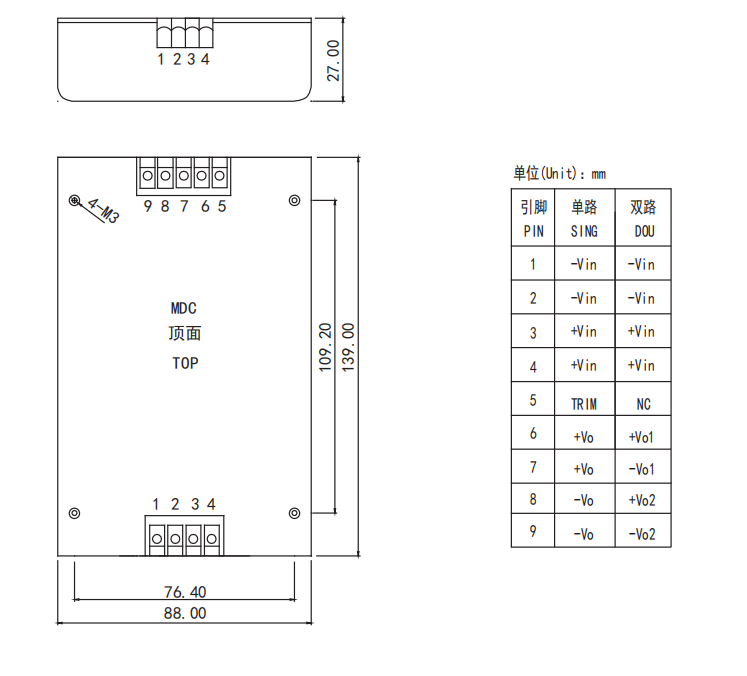

Mechanical drawing and pin definition：
