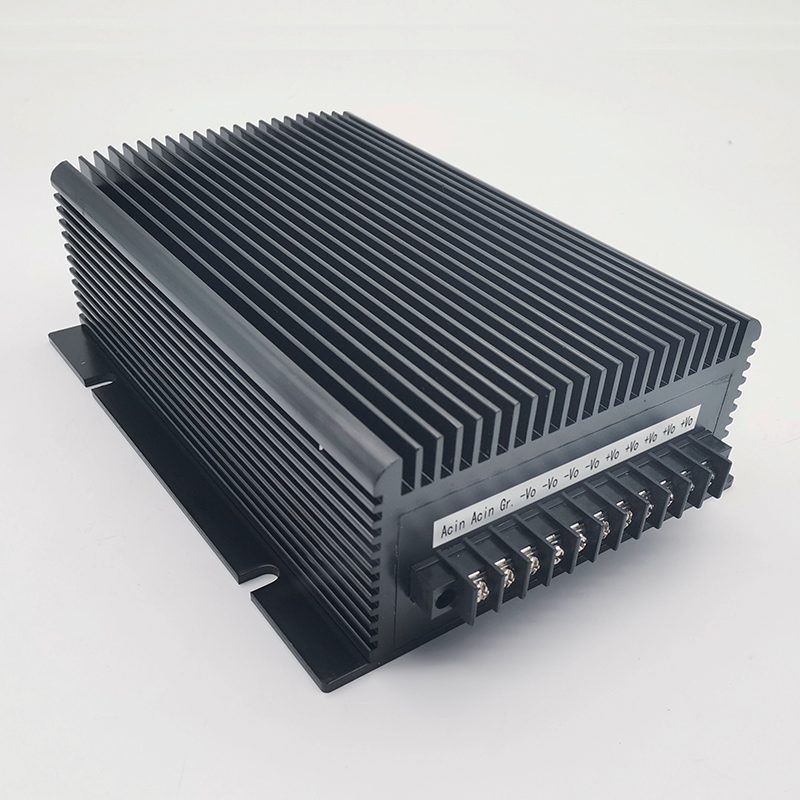

MAH800-1000W

Features :
◆ Broadband noise filter of input
◆ Surge suppress circuit of input
◆ Comply with UL1950, IEC950 safety regulation
◆ Attractive outline design
◆Terminal connection method
◆ High efficiency，good heat dissipation

Product Details

Features :

◆ Broadband noise filter of input

◆ Surge suppress circuit of input

◆ Comply with UL1950, IEC950 safety regulation

◆ Attractive outline design

◆ Terminal connection method

◆ High efficiency，good heat dissipation

Condition: All specifications are tested under the room temperature 25℃ , Normal input voltage and Pure Negative Normal Load.

Input Characteristic：

Voltage Range: 220 VAC Rated value 176-264 VAC

Output Characteristic：

Voltage Set-point Accuracy	±2%
Line Regulation<main>	±0.5%
Load Regulation<main>	±0.5%
Output Current Limiting	120%(Typ)
Output Current	3-80A for option
Output voltage	12-48V
Power	800-1000w

General Characteristic：

Switching Frequency		100 - 200 KHz
Isolation Resitstance		200 MΩ
Isolation Voltage		Input-Output	>1500VAC/1min (leaka ge current<5mA)
		Input-Case	>1500VAC/1min (leaka ge current<5mA)
		Output-Case	>500 VDC/1min
		Main-Vice	>500 VDC/1min
Environmental Characteristics	Case Temperature	Industry	-25 - +85℃
		Military I	-40 - +85℃
		Military II	-55 - +85℃
	Storage Temperature	Industry	-45 - +105℃
		Military	-55 - +105℃

Protective Characteristic：

1、Input under voltage protection

2、Output short circuit protection

3、Over temperature protection

4、Output over current protection

Models：

Vac Input voltage		Vac Input voltage<Range>	Vdc Output voltage	A Output current	pk-pkmv Ripple and noise	Efficiency	Models
SING	220	176-264	12	66.6	120	89%	MAH800-220S12
	220	176-264	15	60	150	89%	MAH900-220S15
	220	176-264	24	41.6	200	90%	MAH1000-220S24
	220	176-264	28	35.7	280	90%	MAH1000-220S28
	220	176-264	48	20.8	400	90%	MAH1000-220S48

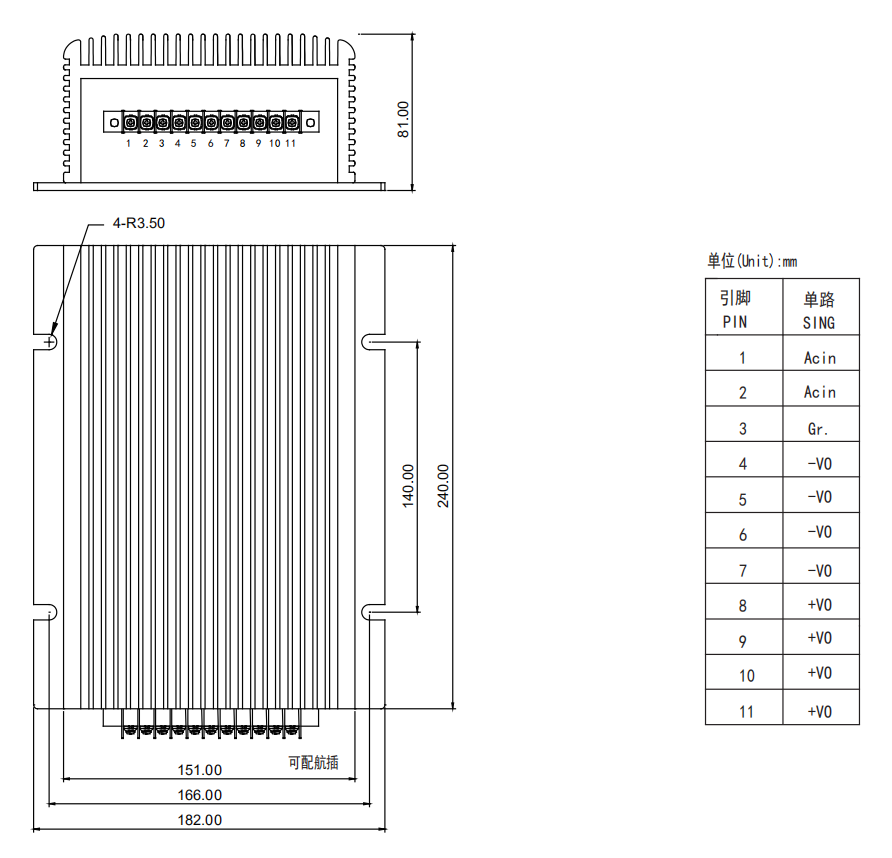

Mechanical drawing and pin definition：
